We will introduce you to TCN-2100/2600, TAKISAWA CNC lathes acting as a global standard of 8 to 10-inch lathe around the world.


Standard machine loved around the world
High rigidity x compact & space-saving x various options
TCN-2100/2600


The TCN series is one-spindle, one-turret CNC lathe for high quality and versatile machining.
As a TAKISAWA’s representative machine, it has the following three features.

With the TAKISAWA’s original bed structure and rectangular slide on each axis, the machine achieves stable machining accuracy and high cutting capability.


TCN-2600, equipped with a 10-inch chuck, requires a floor space of only 2.7 m².(8-inch for TCN-2100)
In addition, the wide opening width of the door provides good accessibility to the spindle and ensures workability.

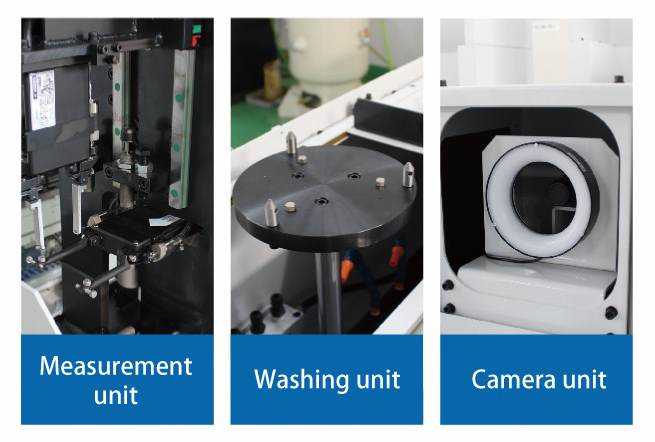

・Milling
・High-speed gantry loader system
・Measurement package, etc.
Other various options, such as automation, are also available.

Moreover, TAKISAWA features the flexibility of customization.
In addition to the standard options, we offer optimum choices corresponding to customer’s environments and target workpieces, with TAKISAWA’s wealth of achievements and technology.

Also see this video.

For details of terms such as rigidity, bed, (cross) slide, and gantry loader, click here:
Machine Tool Terminology and TAKISAWA Products | Takisawa Machine Tool Co., Ltd.

☆☆　Review by developer　☆☆

At the time of development, we received a request to develop an inexpensive 8-inch CNC lathe to which a 10-inch chuck can be mounted.
TCN-2000/2500 was developed in 2008. It inherited the 1600 mm machine width of TC-200, which was sold as a standard 8-inch CNC lathe, while increasing the standard machining diameter and enabling a 10-inch chuck to be mounted. Subsequently, minor changes were made to it, which is the current TCN-2100/2600.
TCN-2100/2600 continues to meet customer requests as “the standard machine loved around the world”.
